Apilada

Back to Styles

Next Style

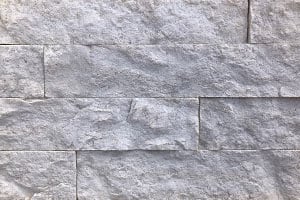

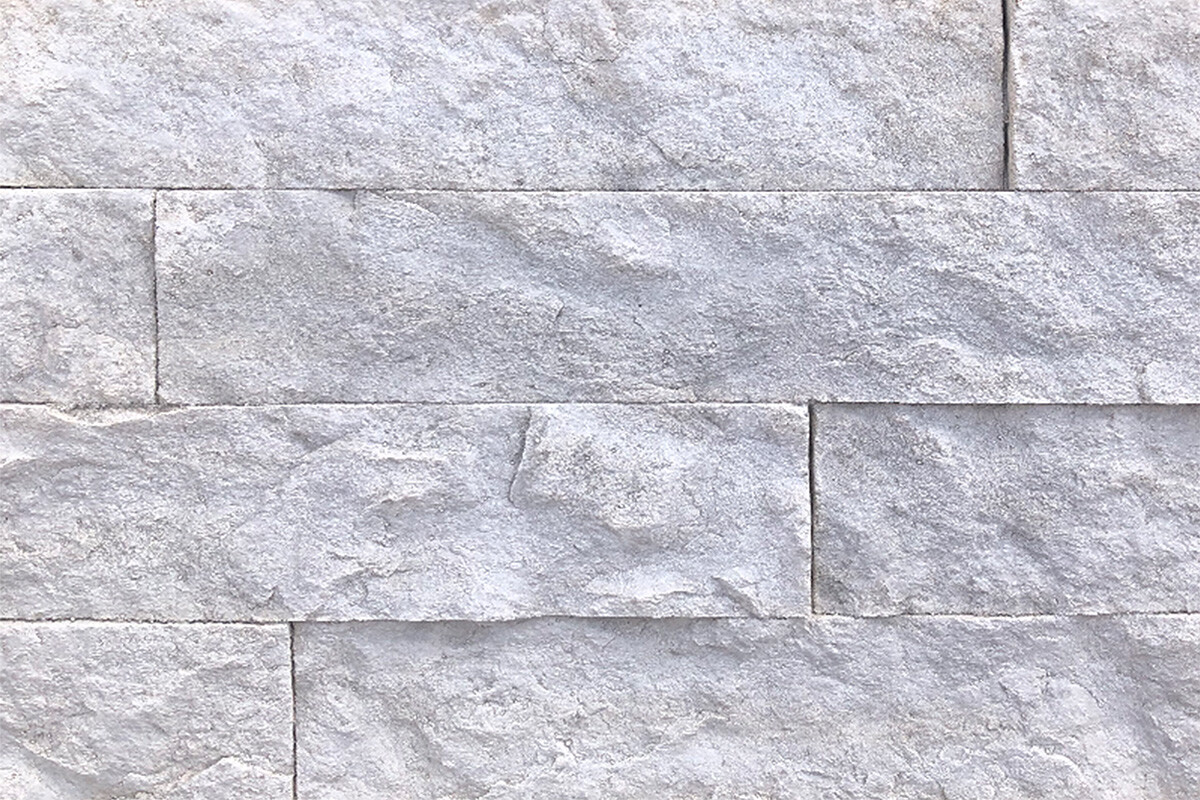

Graham Apilada

Bull Run Apilada (Custom)

*Bull Run Apilada

*Bull Run Apilada

*Elkview Apilada

*Elkview Apilada

*Elkview Apilada

Color Selections:

Quality Stone Veneer products are made by hand from natural stone profiles to replicate the variation and detail of stone found in the natural environment. Although swatches are indented to represent selections as accurately as possible, colors may vary online and in print form. It is recommended to view a physical sample, and/or project before making a final selection.

*Indicates Custom Color

Apilada

Apilada features a linear look of 3” high drystacked pieces. Multiple size preset stone panels more easily install and flawlessly achieve a level finish. Additionally, Apilada can be installed using the Clip System™, simplifying the installation process further and eliminating the need for most mortar and wire lath in its installation.

Installation Type: Clip System™, Mortar and Wire Lath

Request a Quote

Request a stone veneer quote for your project with our form below. Please specify if you're interested in a Stone & Installation Package, or Stone Only. Response times are generally 1-2 business days.

Order a Sample

Request a free, personalized quote for your project with just a few clicks above, or head over to our Request a Quote page to tell us more!

Pieces:

Clip System™ :

Apilada can either be mechanically fastened via the Quality Stone Veneer Clip System™, or Direct Applied with mortar and wire lath.

Lambris Product

Clip System™ Compatible

Less Weight Per Sq/Ft

(Clip System™ Install)

Built-in Drainage

(Clip System™ Install)

All Available Colors In Apilada:

$ | Standard Lead Time

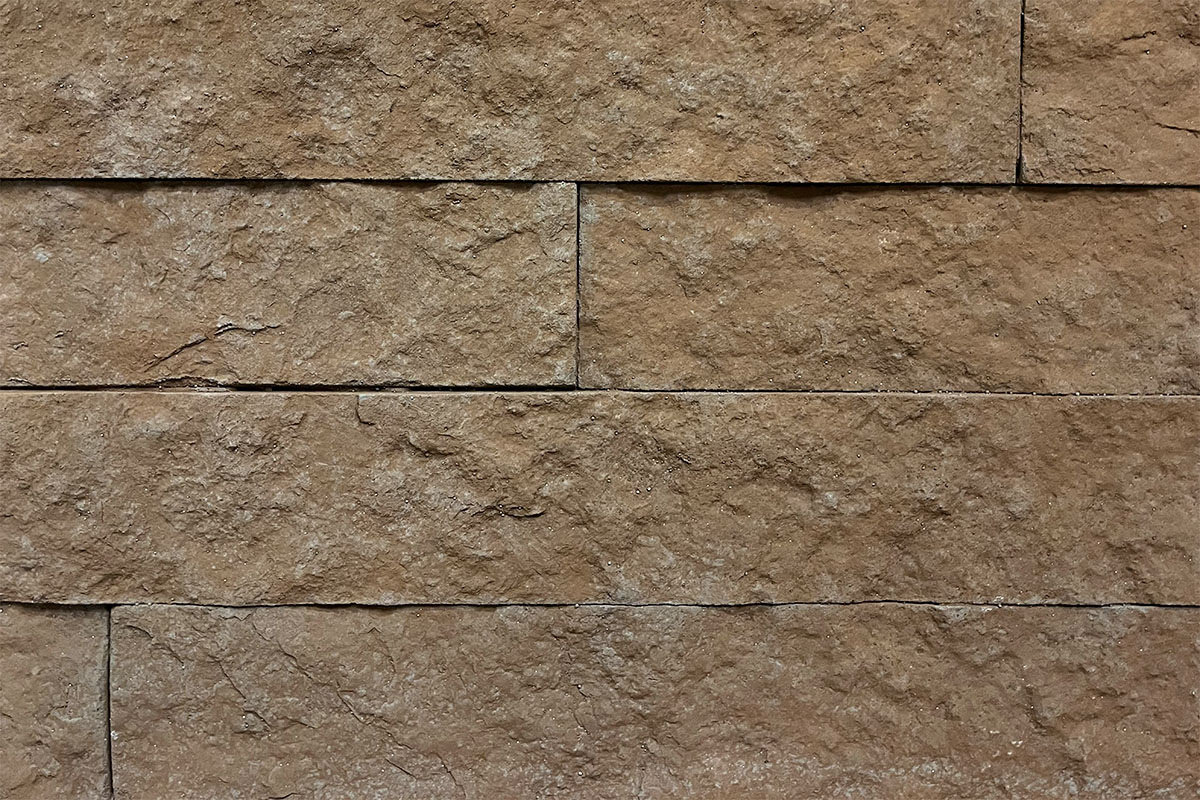

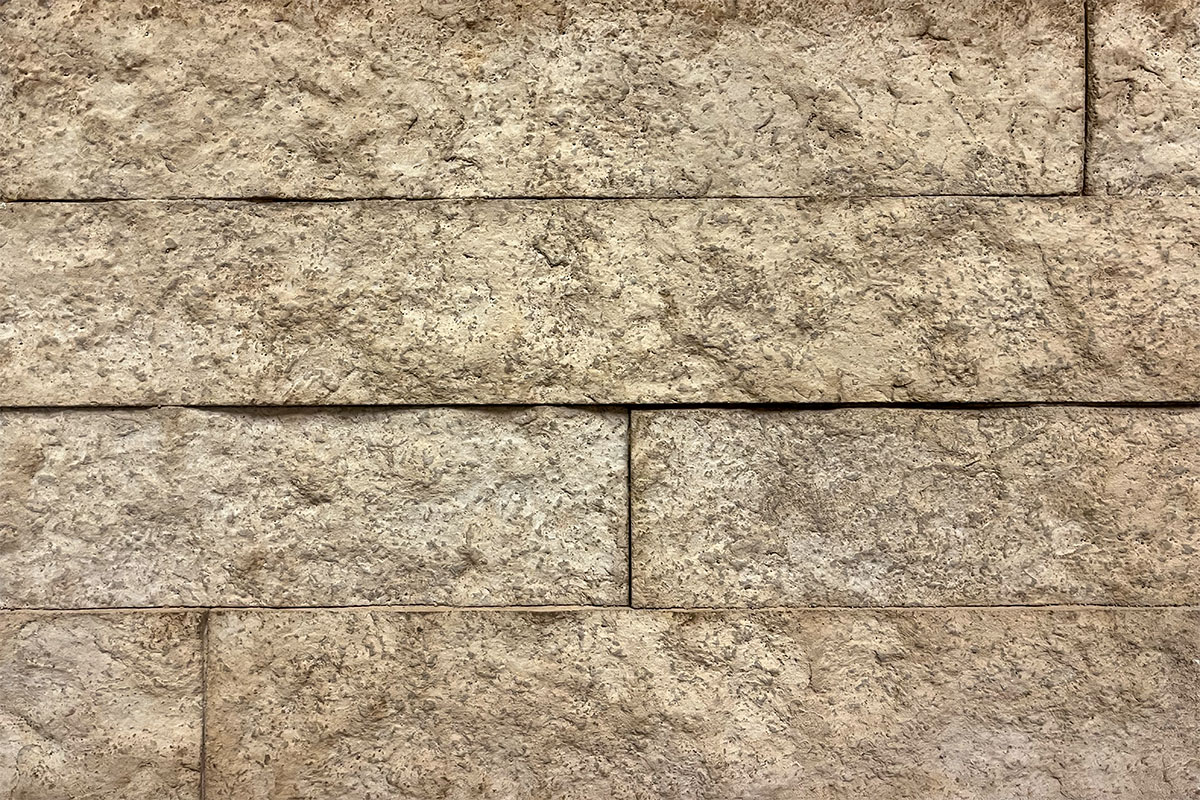

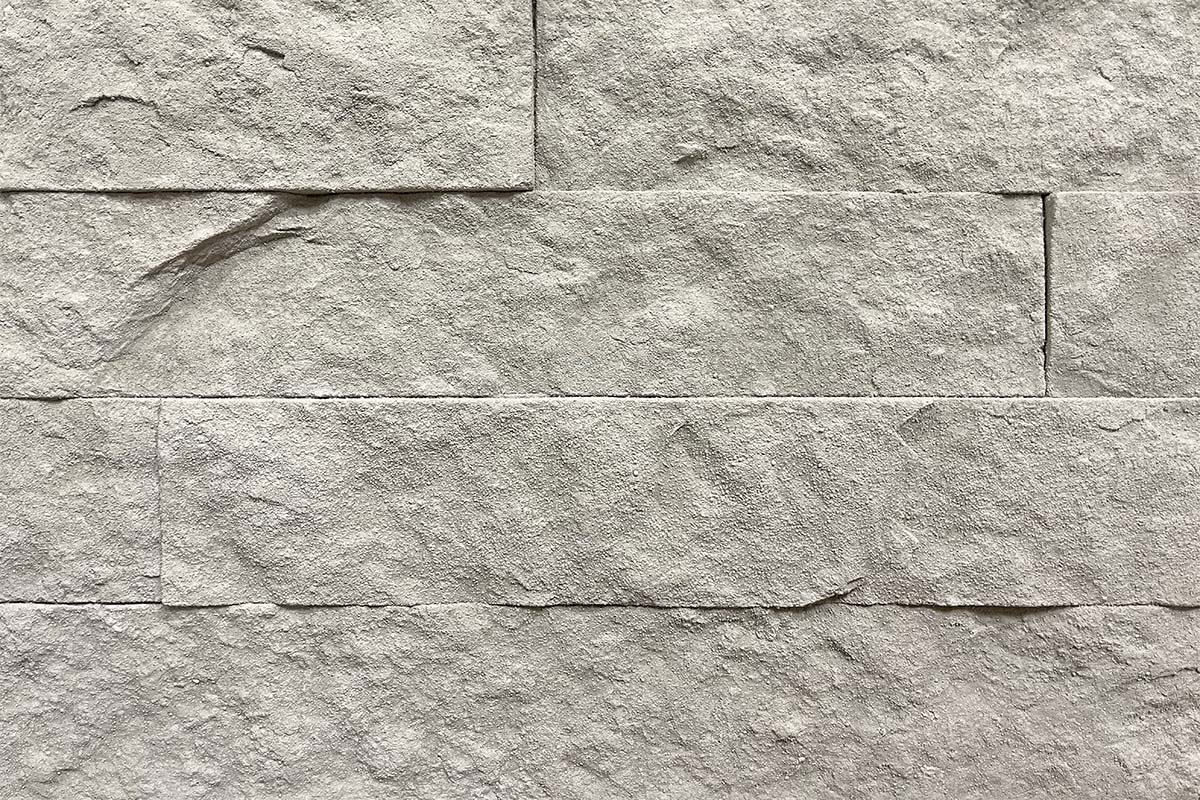

Calacatta, Graham, Hazel, Oxford, Pewter, Pueblo, Sienna

Technical Specifications:

Product thickness 1 1/2 inch

Density (lbs. per cu. ft.) 82.2

Temperature hot side (F) 95 degrees

Temperature cold side (F) 55 degrees

Average mean temp (F) 75 degrees

Thermal conductivity (k) 1.569

Thermal resistance (r) 1.148

Absorption (24 hours) 15.1%

Download Apilada Product Submittals Here

Clip System™ Installation Advantages:

Built-in drainage plane
Ability to install in all temperatures
Reduction on materials
Easier remodels
Less weight per square foot

PIECE	LARGE FLAT	SMALL FLAT	CORNER
LENGTH	26 3/4 INCH	24 INCH	16 1/2 INCH
HEIGHT	12 INCH	3 INCH	6 INCH
THICKNESS	1 1/2 INCH	1 1/2 INCH	1 1/2 INCH
COVERAGE	2.22 FEET	0.55 FEET	0.68 FEET

Ordering Stone Only? We're happy to help determine a recommended quantity of pieces required for your project based off your plans and square footages. Estimating instructions and piece calculators are also available upon request.
