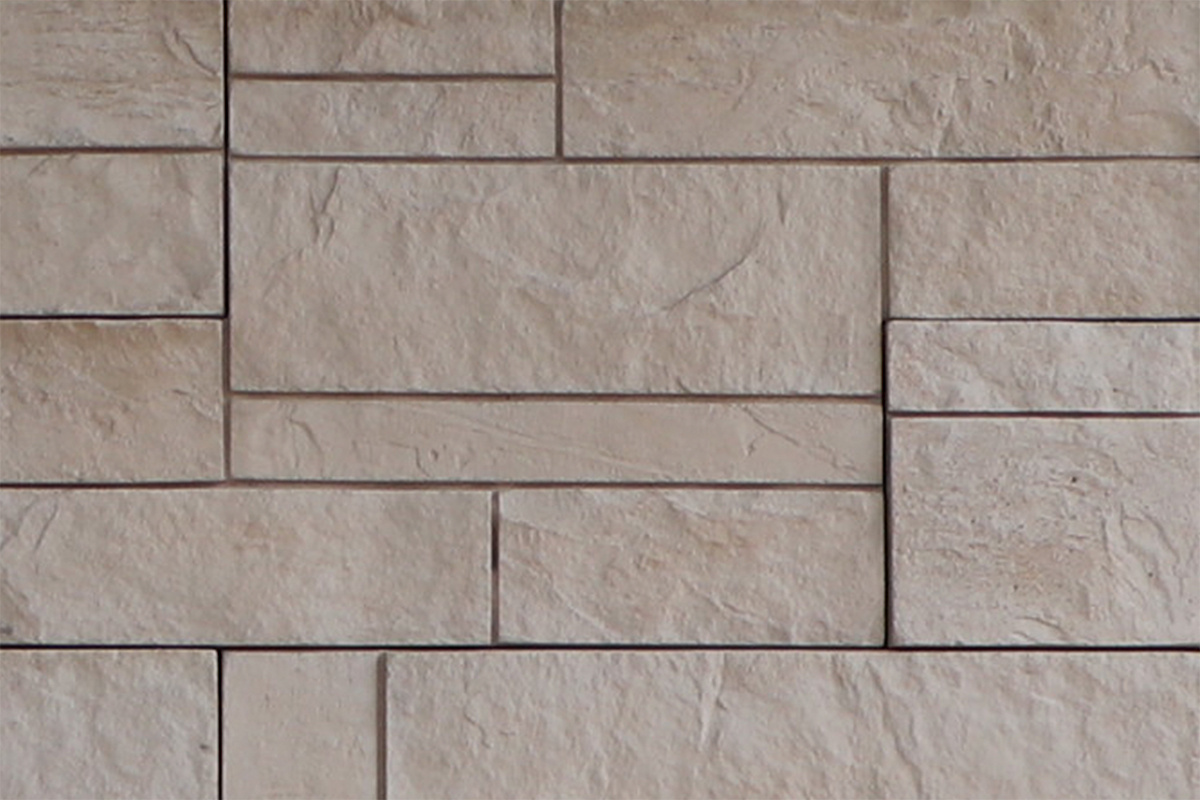

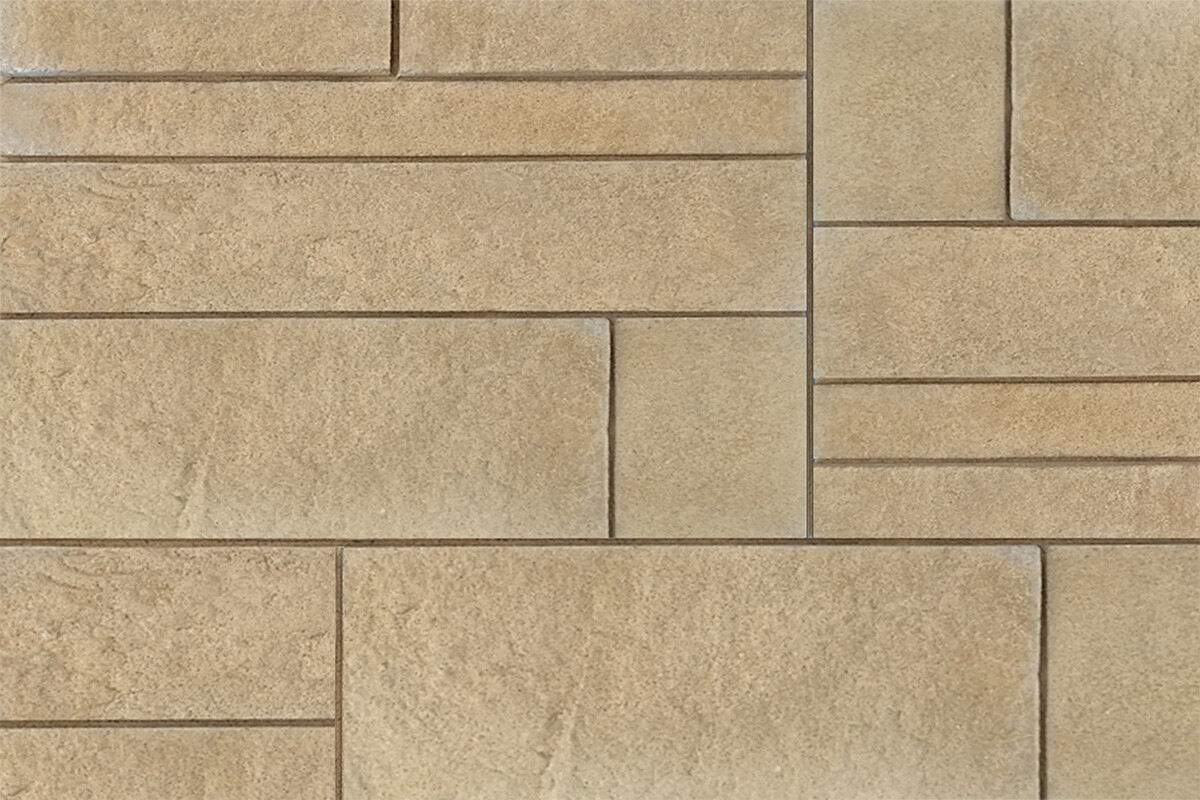

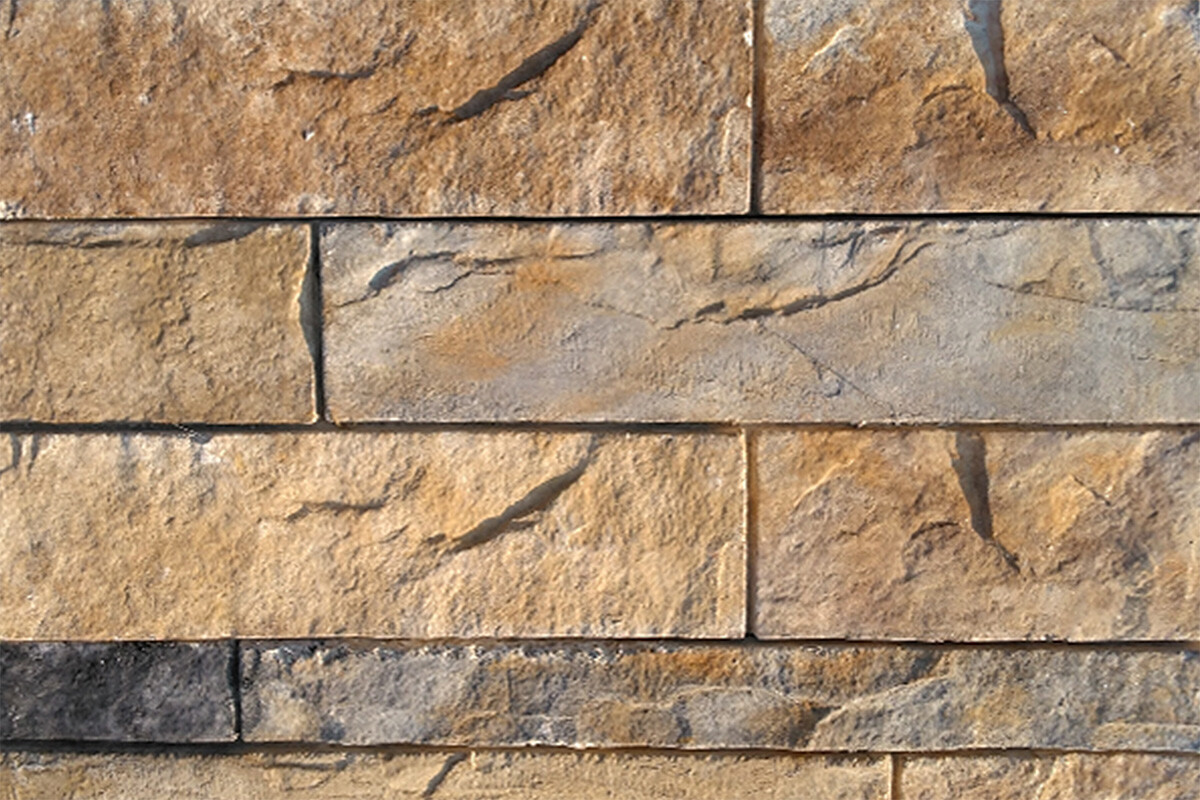

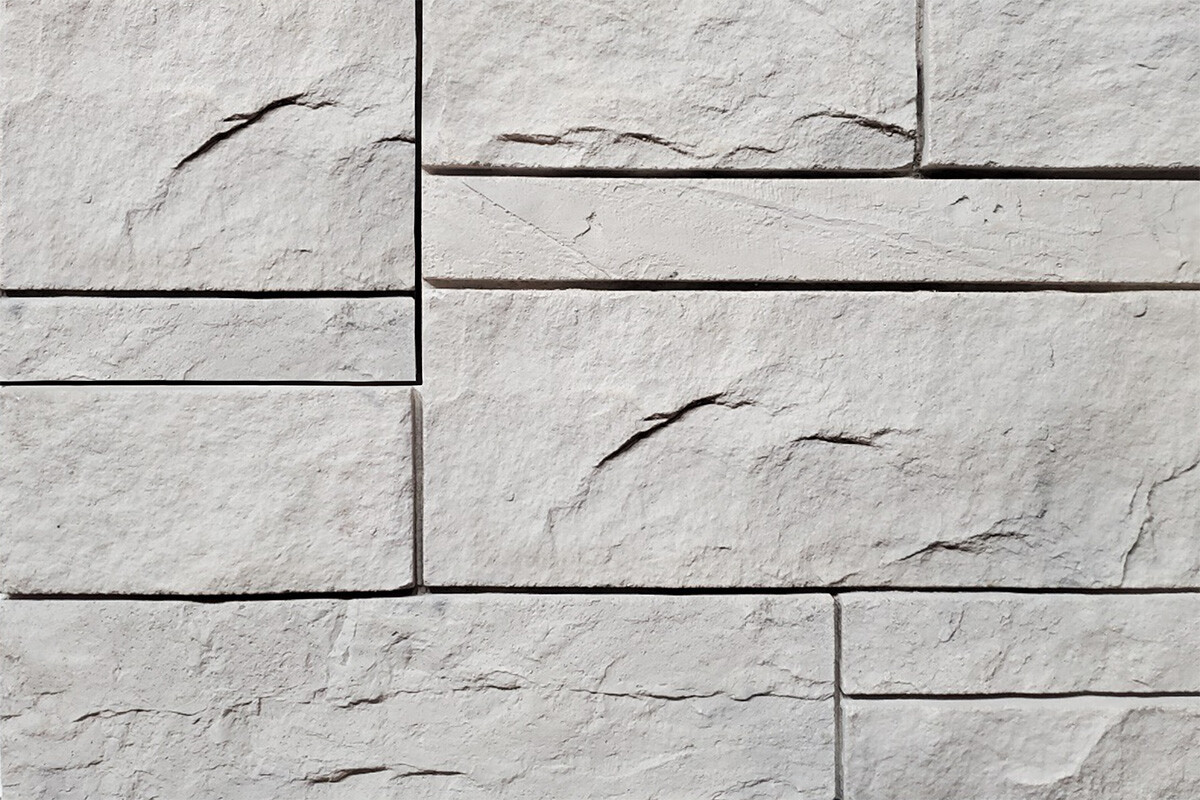

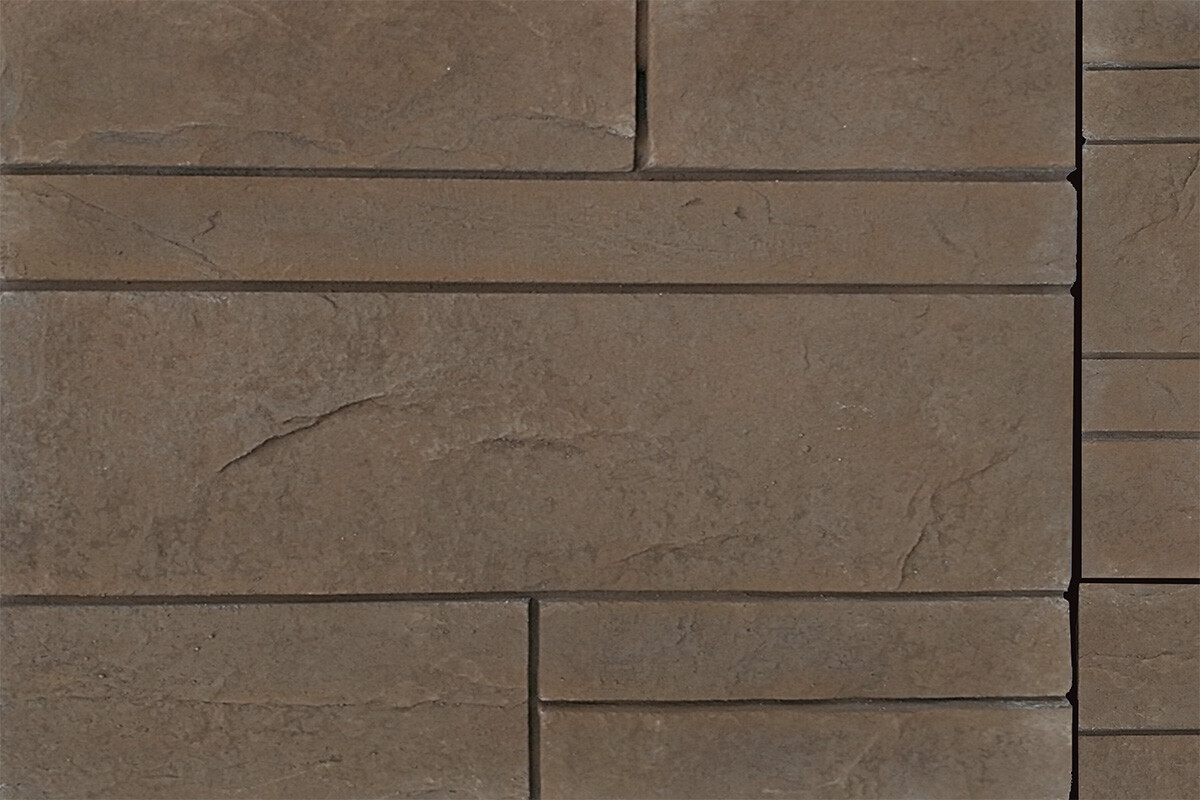

COLOR SELECTIONS:

Quality Stone Veneer products are made by hand from natural stone profiles to replicate the variation and detail of stone found in the natural environment. Although swatches are indented to represent selections as accurately as possible, colors may vary online and in print form. It is recommended to view a physical sample, and/or project before making a final selection.

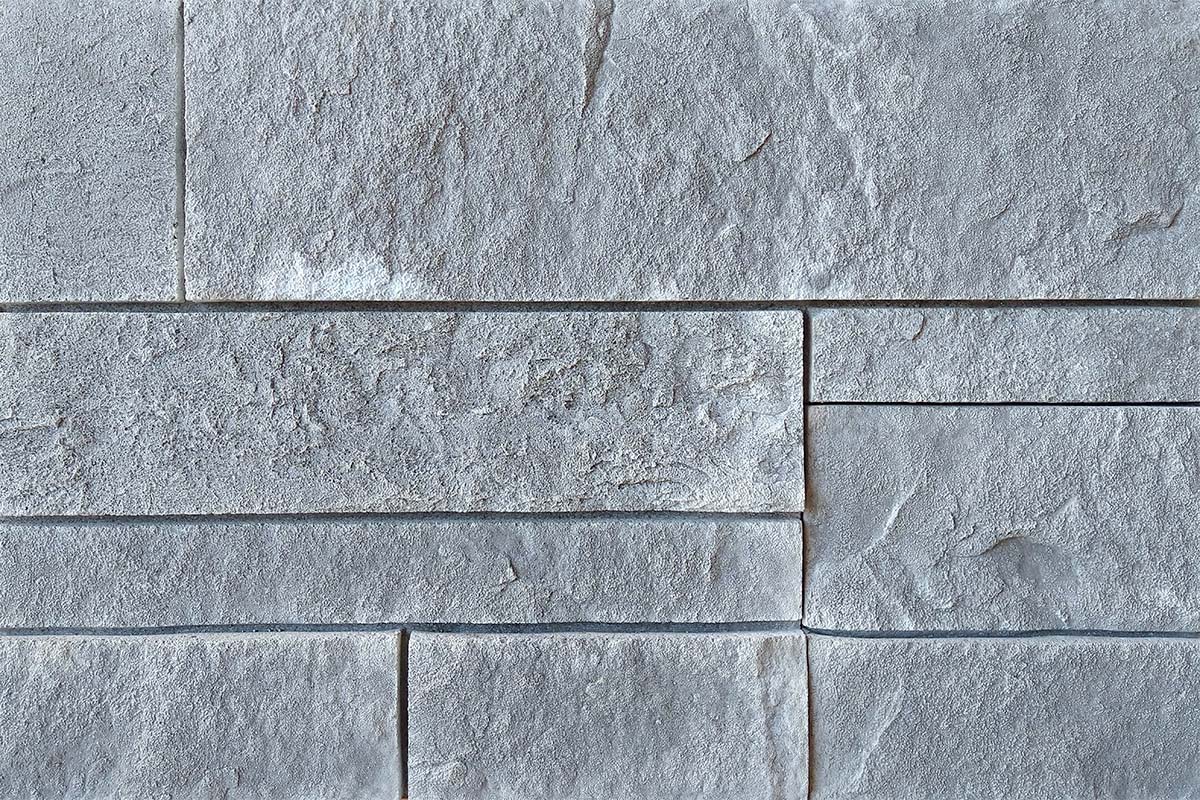

SEGOVIA

Another brand new profile, Quality Stone Veneer is excited to announce Segovia to our ever-growing line of Clip System™ compatible, Lambris styles. Segovia is uniquely designed as a contemporary drystack with low relief. Segovia’s face texture is sandstone in finish throughout, with castings of natural stone inlays. The offsetting pattern provided by its preset pieces guarantee perfection in installation, eliminating the indication of any predetermined pattern. Transform your project easily with Segovia's contemporary drystack finish.

segovia

PIECES:
  • large-flat-segovia
  • Segovia-small-flat
  • Segovia-large-corner
  • Segovia-sm-corner

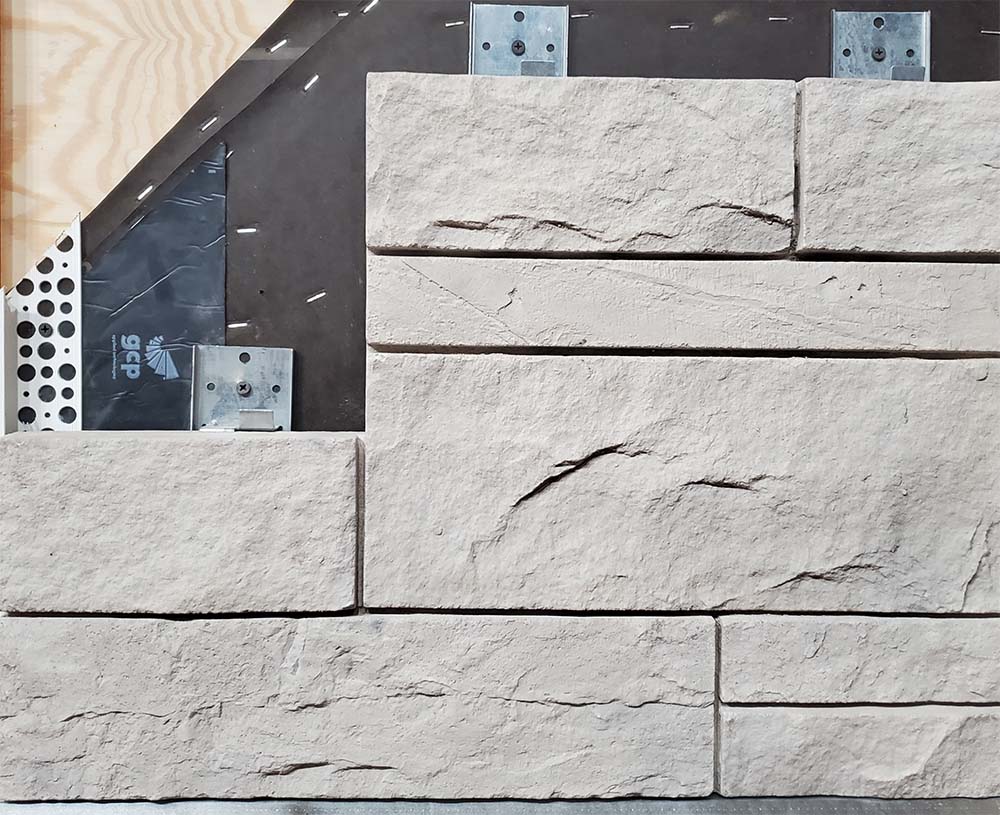

CLIP SYSTEM™ CUTAWAY:
Segovia-Clip-System-PNG

Contact us at (800)759-3229 to get started, or Request a Quote Below.

Segovia can either be mechanically fastened via the Quality Stone Veneer Clip System™, or Direct Applied with mortar and wire lath.

LAMBRIS PRODUCT
CLIP SYSTEM™ COMPATIBLE
LESS WEIGHT PER SQ/FT

(Clip System™ Install)

BUILT-IN DRINAGE

(Clip System™ Install)

ALL AVAILABLE COLORS IN SEGOVIA:

STANDARD-COLOR $ | Standard Lead Time

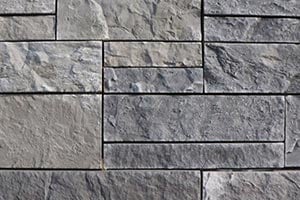

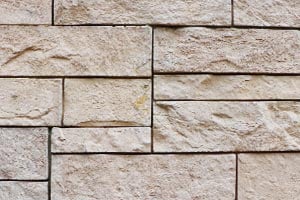

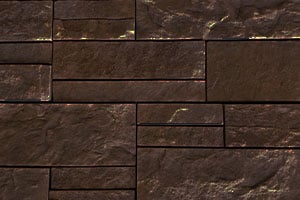

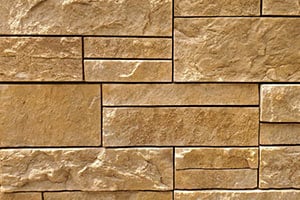

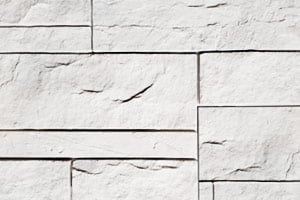

  • Calacatta, Graham, Hazel, Oxford, Pewter, Pueblo, Sienna

CUSTOM-COLOR-1 $$$ | Longer Lead Time

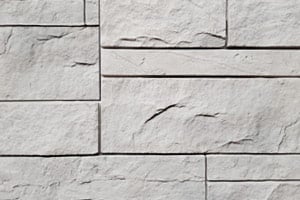

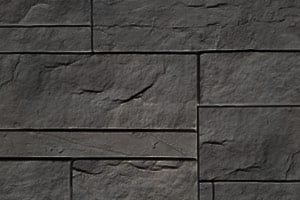

  • Eggshell, Onyx



TECHNICAL SPECIFICATIONS:
Product thickness    1 1/2 inch
Density (lbs. per cu. ft.)    82.2
Temperature hot side (F)    95 degrees
Temperature cold side (F)    55 degrees
Average mean temp (F)    75 degrees
Thermal conductivity (k)    1.569
Thermal resistance (r)    1.148
Absorption (24 hours)    15.1%

Download Segovia Product Submittals Here

CLIP SYSTEM™ INSTALLATION ADVANTAGES:
  • Built-in drainage plane
  • Ability to install in all temperatures
  • Reduction on materials
  • Easier remodels
  • Less weight per square foot
CLIP COMPATIBLE-1
large-flat-segovia
Segovia-small-flat
Segovia-large-corner
Segovia-sm-corner
PIECE LARGE FLAT SMALL FLAT LARGE CORNER SMALL CORNER
LENGTH 24 INCH 24 INCH 24 INCH 16 INCH
HEIGHT 16 INCH 8 INCH 8 INCH 8 INCH
THICKNESS 1 1/2 INCH 1 1/2 INCH 1 1/2 INCH 1 1/2 INCH
WALL COVERAGE 2.66 FEET 1.33 FEET 1.33 FEET 0.88 FEET

Ordering Stone Only? We're happy to help determine a recommended quantity of pieces required for your project based off your plans and square footages. Estimating instructions and piece calculators are also available upon request.

two-hands-1_hires-1 Handcrafted

Made by hand, built to last.


tool Customization Endless combinations and customization.
warranty-1 Warranty 50 Year Warranty on all Styles.
Gray Cement Wall. Seamless Tileable Texture.

THE CLIP SYSTEM™

Learn more about our patented Clip System™ installation method and the advantages it provides.
