Drystack

Drystack originates from its use in stone walls and fences. Its distinctive natural appearance offers a  linear shape with a weathered face. With a stacked façade, Drystack creates dimension, depth, and a pronounced shadow effect.

Drystack can be dry-laid meaning no spacing between the stone, or jointed with a mortar joint between the stone.

Standard Color Selections:


FLATS HEIGHT: 1.5" – 5"  |  LENGTH: 3" – 22"  |  THICKNESS: 2" – 3.5"

CORNER RETURNS SHORT: 4"  |  LONG: 4" – 18"


INSTALLATION: MORTAR & WIRE LATH

PRODUCT TYPE: INDIVIDUAL STONE PIECES

Standard Color Selections:

All Available Colors In Drystack:

STANDARD-COLOR $ | Shortest Lead Time

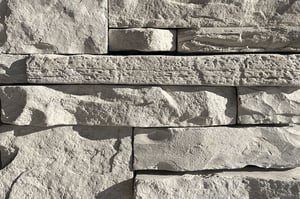

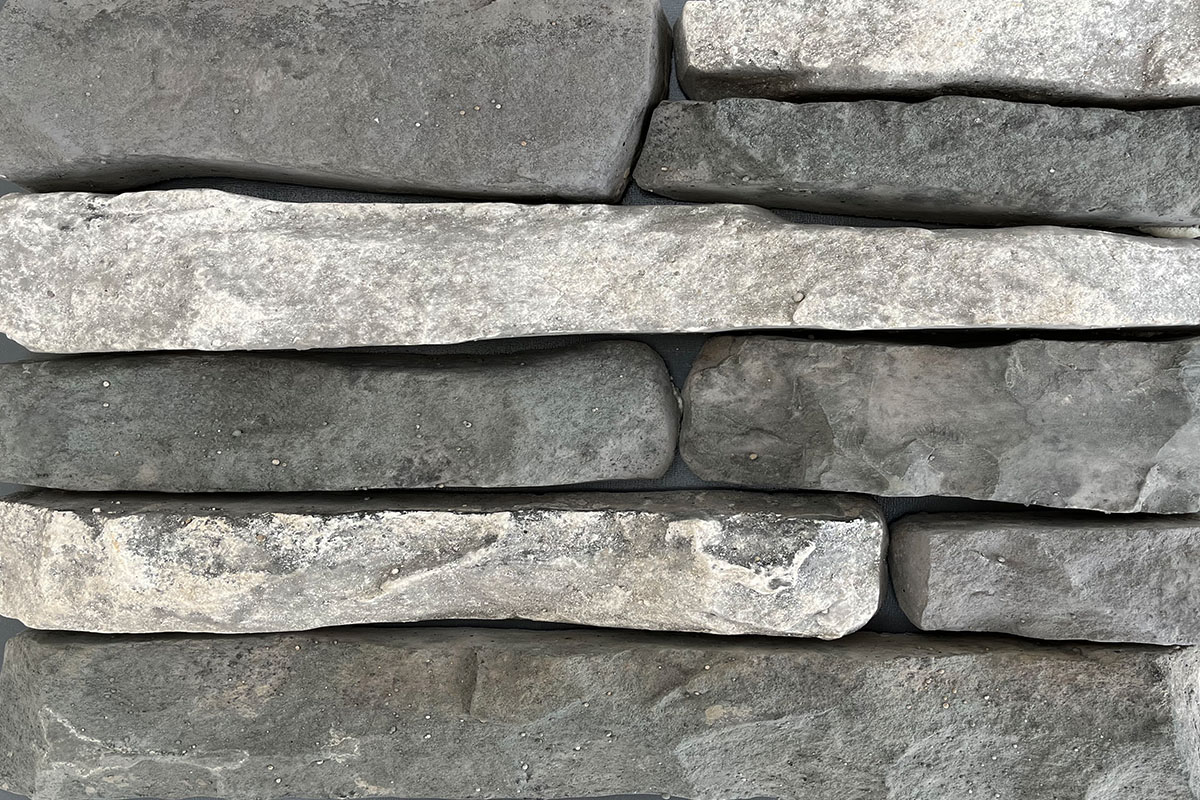

  • Bull Run, Eggshell, Granite, PA Lime, Provence, Rockvale

CLASSIC-COLOR $$ | Longer Lead Time

  • All Classic Colors (10)

LEGACY-COLOR $$$ | Longest Lead Time

  • All colors outside Standard or Classic.

While swatches are designed to represent selections as accurately as possible, color may vary online and in print. Viewing a physical sample and/or completed project is recommended before final selection.

Styles Commonly Custom Blended with Drystack:

Technical Specifications:

Average product thickness    1 1/2"
Density (lbs. per cu. ft.)    82.2
Temperature hot side (F)    95 degrees
Temperature cold side (F)    55 degrees
Average mean temp (F)    75 degrees
Thermal conductivity (k)    1.569
Thermal resistance (r)    1.148
Absorption (24 hours)    15.1%
