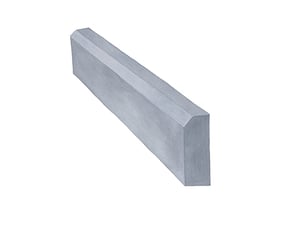

Sand-Siota-Beveled-Water-Table-5
Schoolhouse Red Metropolitan Brick | Gray Mortar
Metro-brick-1
Schoolhouse Red Metropolitan Brick | Gray Mortar
Metro-brick-4
Schoolhouse Red Metropolitan Brick | Gray Mortar
metro-brick-5
Schoolhouse Red Metropolitan Brick | Gray Mortar
Plymouth Metro 6 - Web

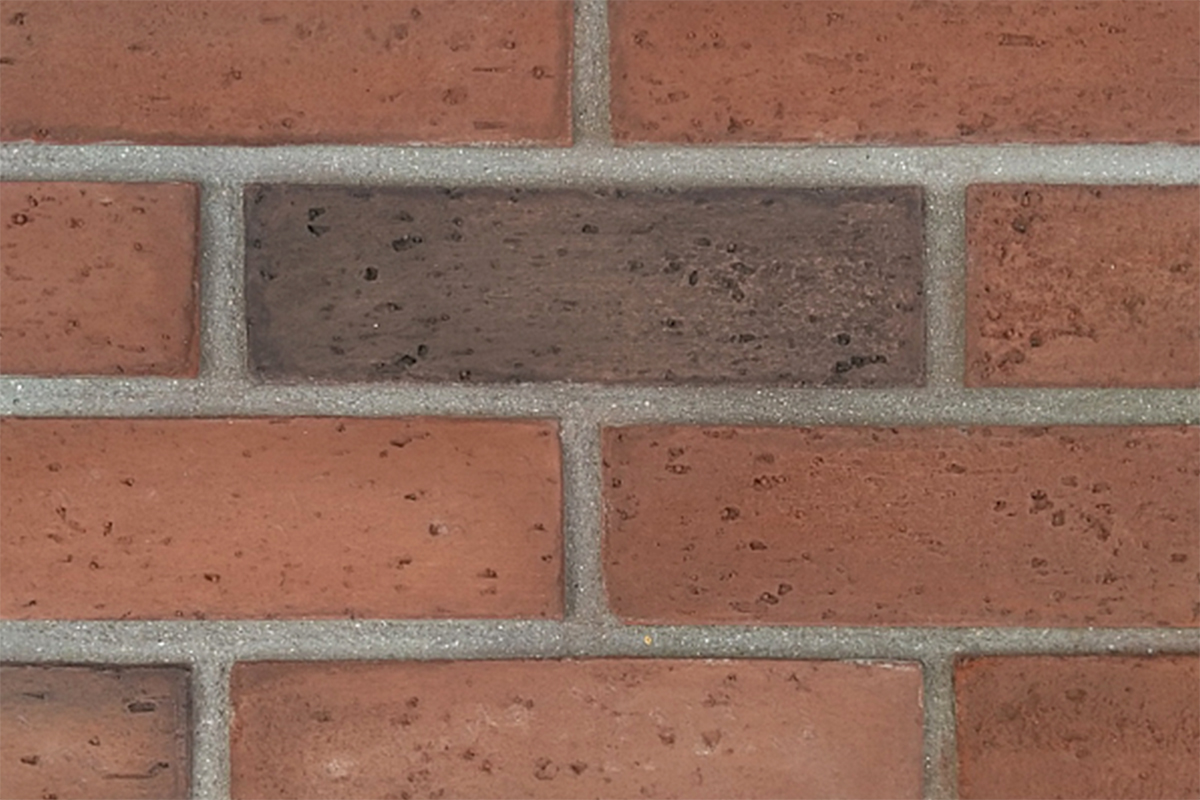

Plymouth Metropolitan Brick | Gray Mortar
Plymouth Metro 3 - Web
Plymouth Metropolitan Brick | Gray Mortar
Plymouth Metro 2 - Web
Plymouth Metropolitan Brick | Gray Mortar
Plymouth Metro 9 - Web
Plymouth Metropolitan Brick | Gray Mortar
Plymouth Metro 8 - Web
Plymouth Metropolitan Brick | Gray Mortar
Plymouth Metro 4 - Web
Plymouth Metropolitan Brick | Gray Mortar
Desert Metro 2
Desert Metropolitan Brick | Gray Mortar
Desert Metro 1
Desert Metropolitan Brick | Gray Mortar
Desert Metro 3
Desert Metropolitan Brick | Gray Mortar
Metropolitan-Brick-1
Desert Metropolitan Brick | Gray Mortar

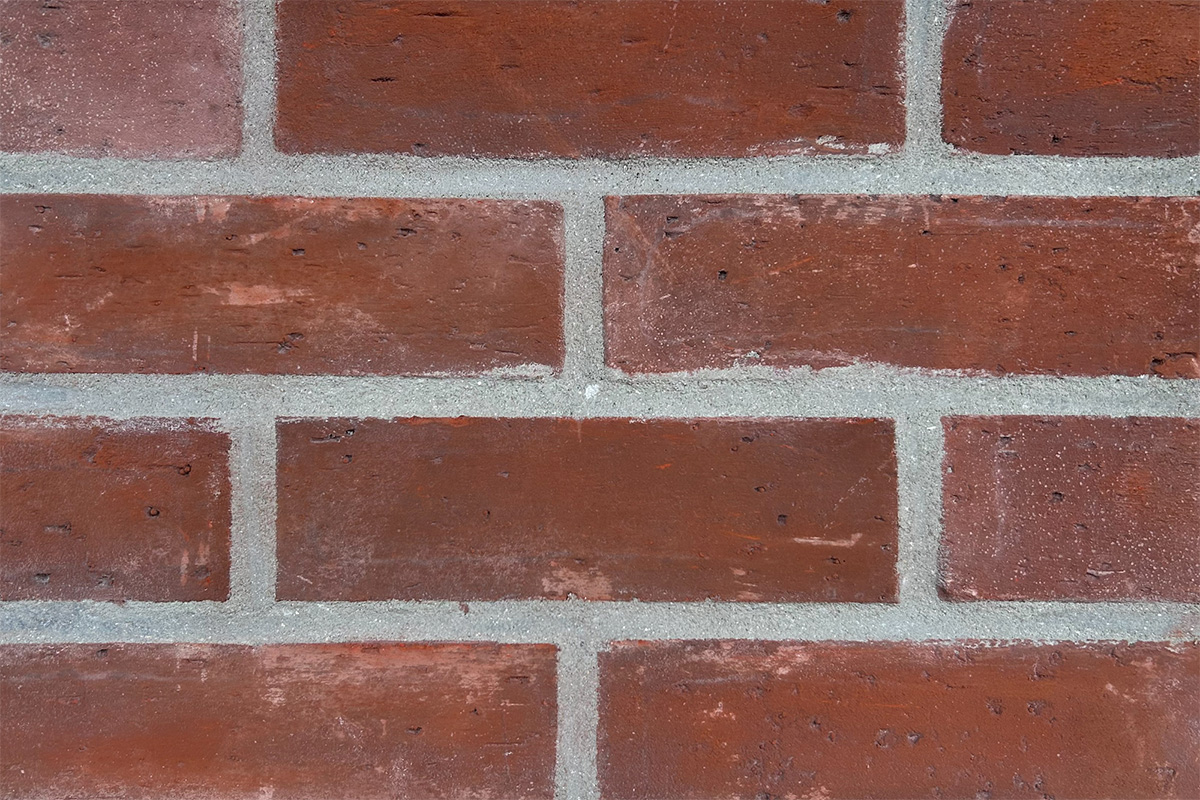

Standard Color Selections:

Metropolitan Brick

Metropolitan Brick is a standard size thin brick veneer, wire cut in style. Six bricks preset into the form of an easy to install, lightweight brick panel keep horizontal rows of brick level across the wall, a process immensely difficult to do otherwise with a one brick system. Corner pieces provide the appearance of a full depth brick around outside corners.

Pieces:
  • metro-brick-6
  • metro-brick-1-flat
  • metro-brick-corner

INSTALLATION:

MORTAR & WIRE LATH | CLIP SYSTEM™

PRODUCT TYPE:

THIN BRICK PANEL SYSTEM

Metropolitan Brick can either be mechanically fastened via the Quality Stone Veneer Clip System™, or Direct Applied with mortar and wire lath.

Thin Brick Panels
Clip System™ Compatible
Less Weight Per Sq/Ft

(Clip System™ Install)

Built-in Drainage

(Clip System™ Install)

All Available Colors In Metropolitan Brick:

STANDARD-COLOR $ | Standard Lead Time

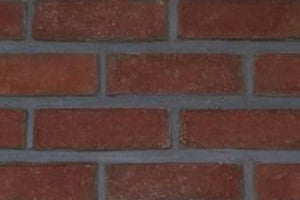

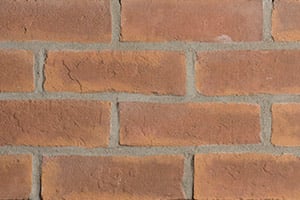

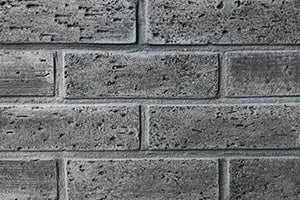

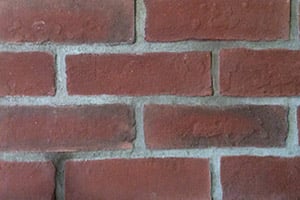

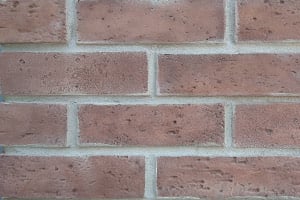

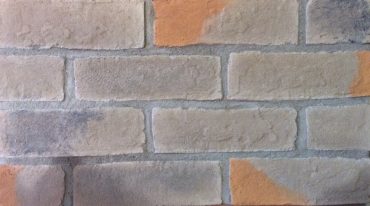

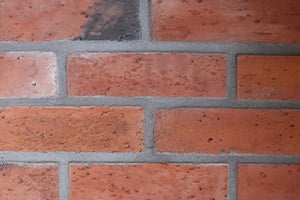

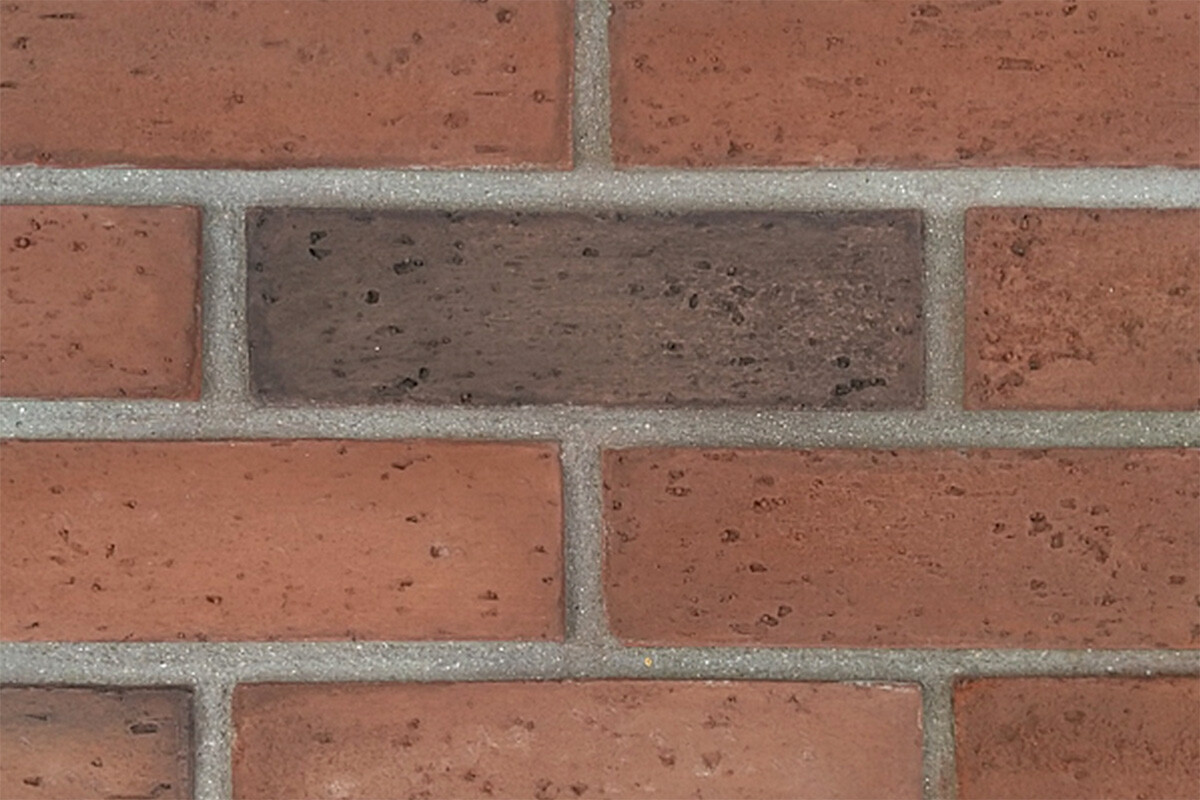

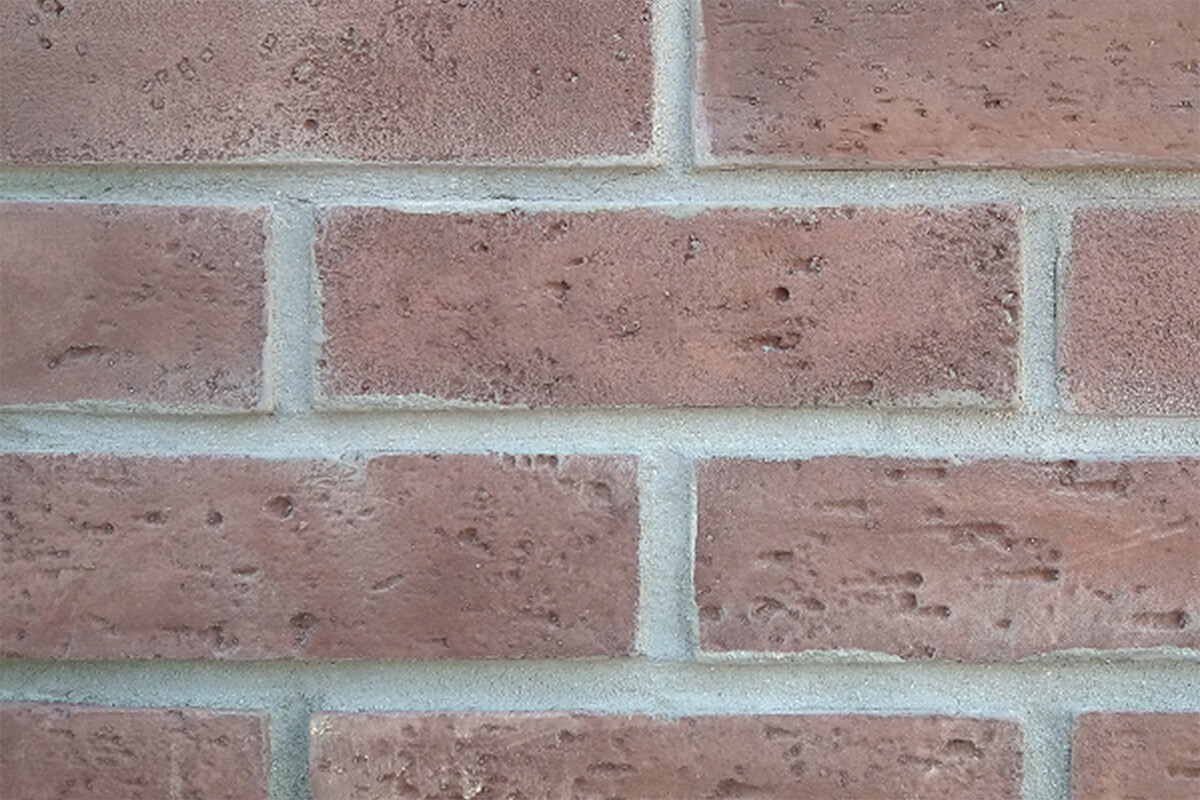

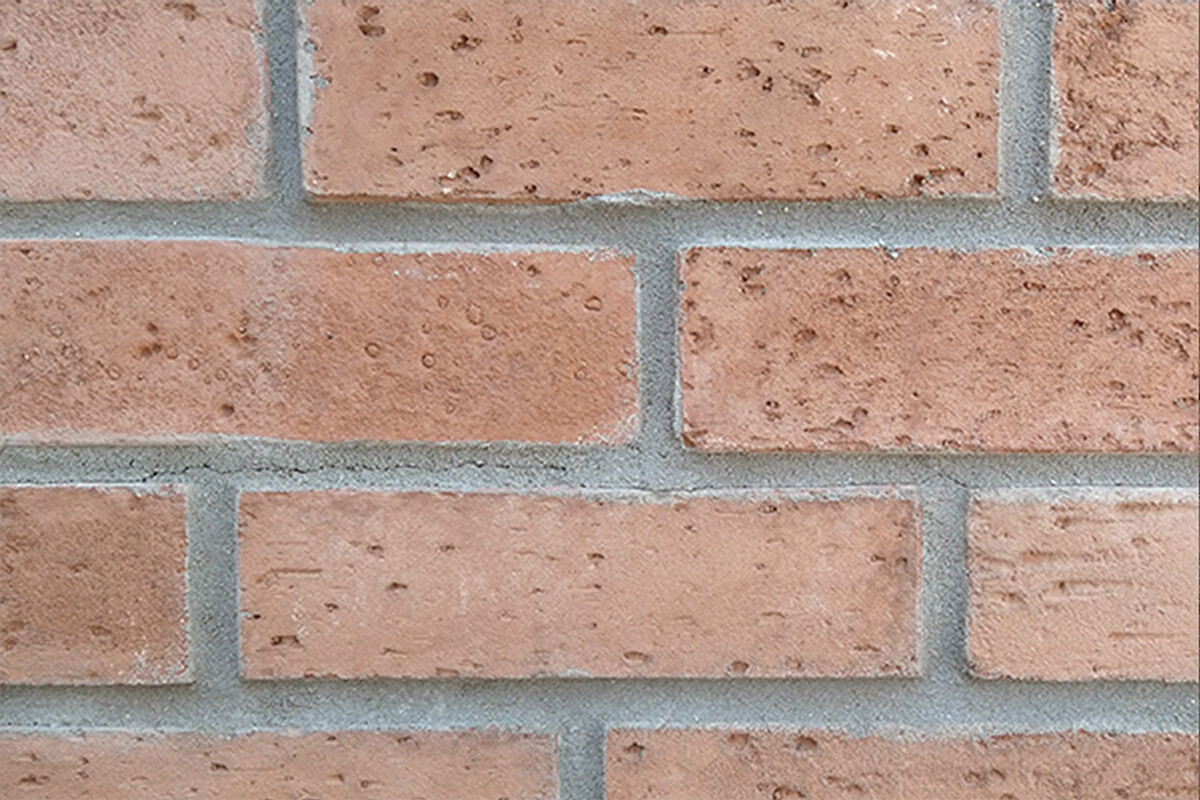

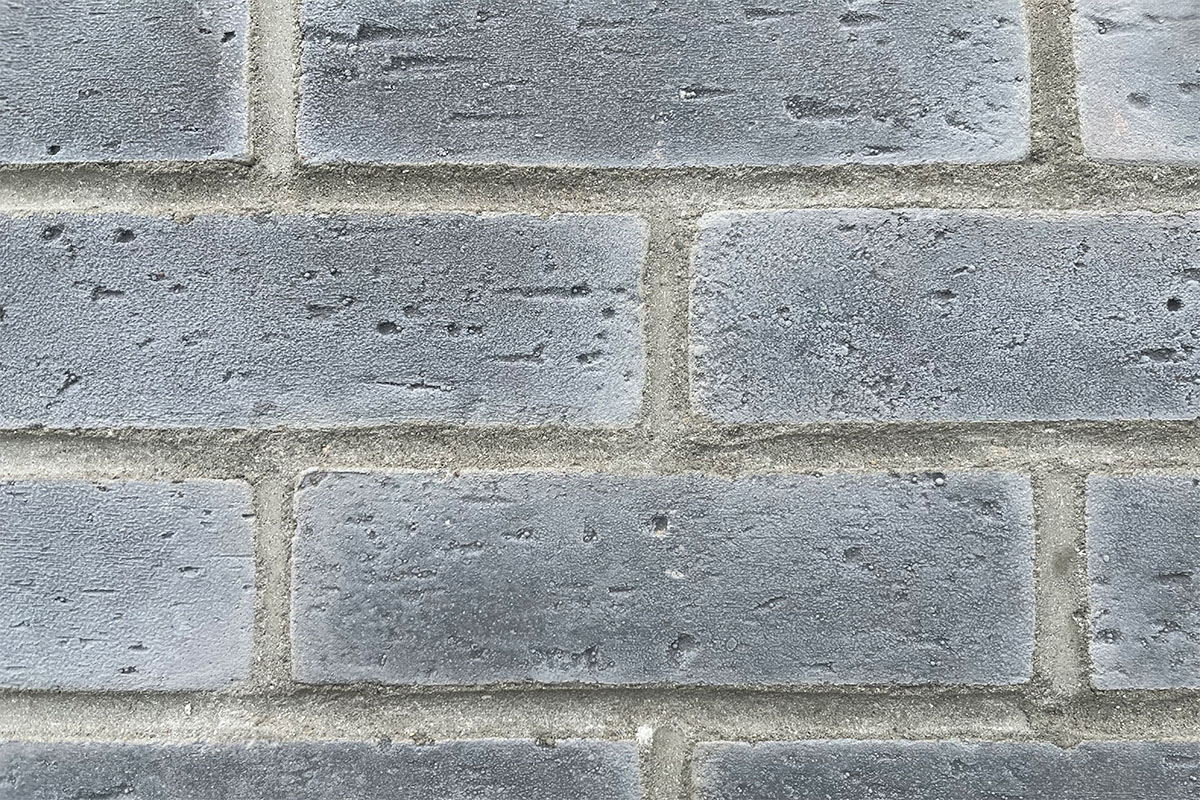

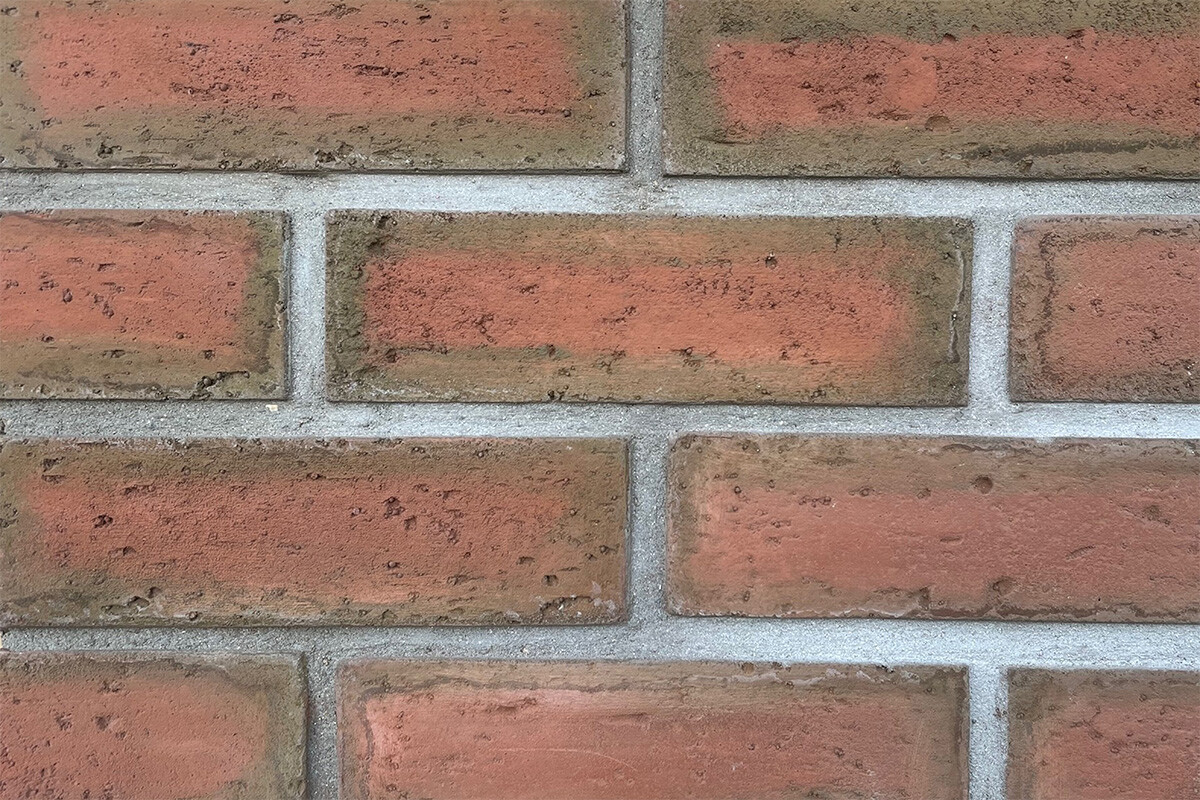

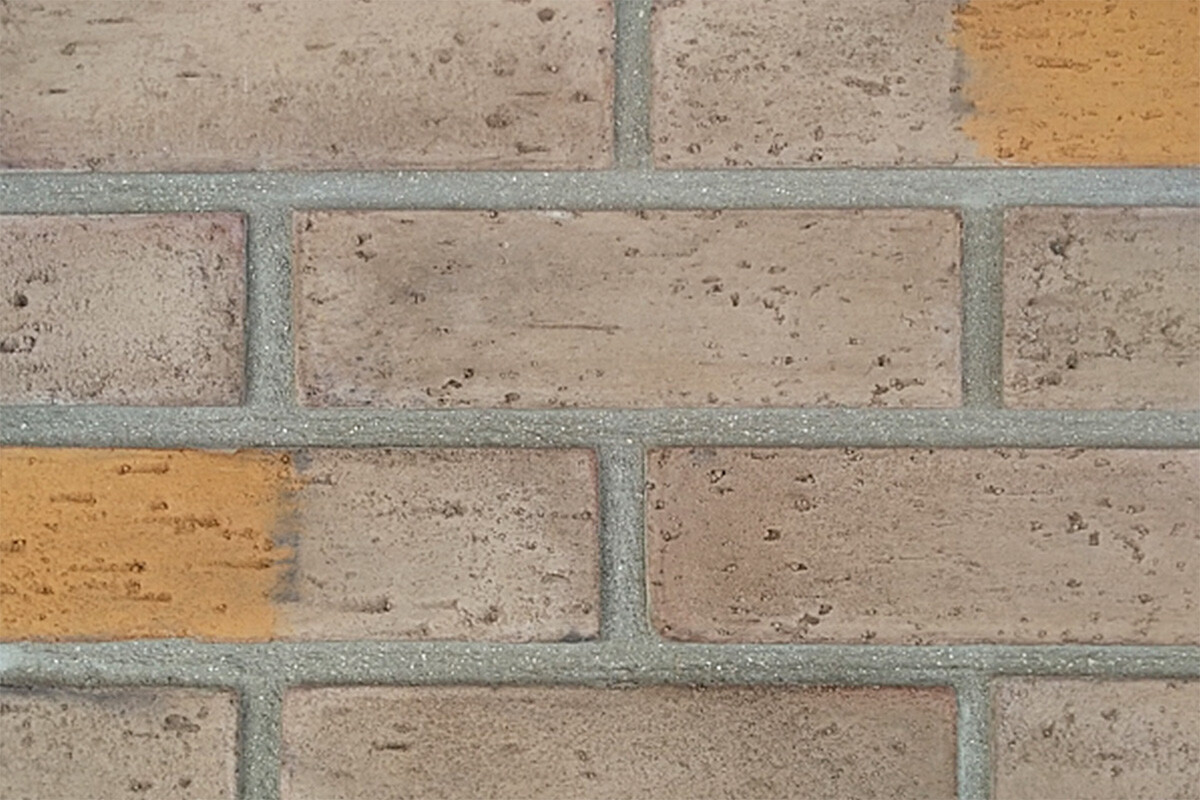

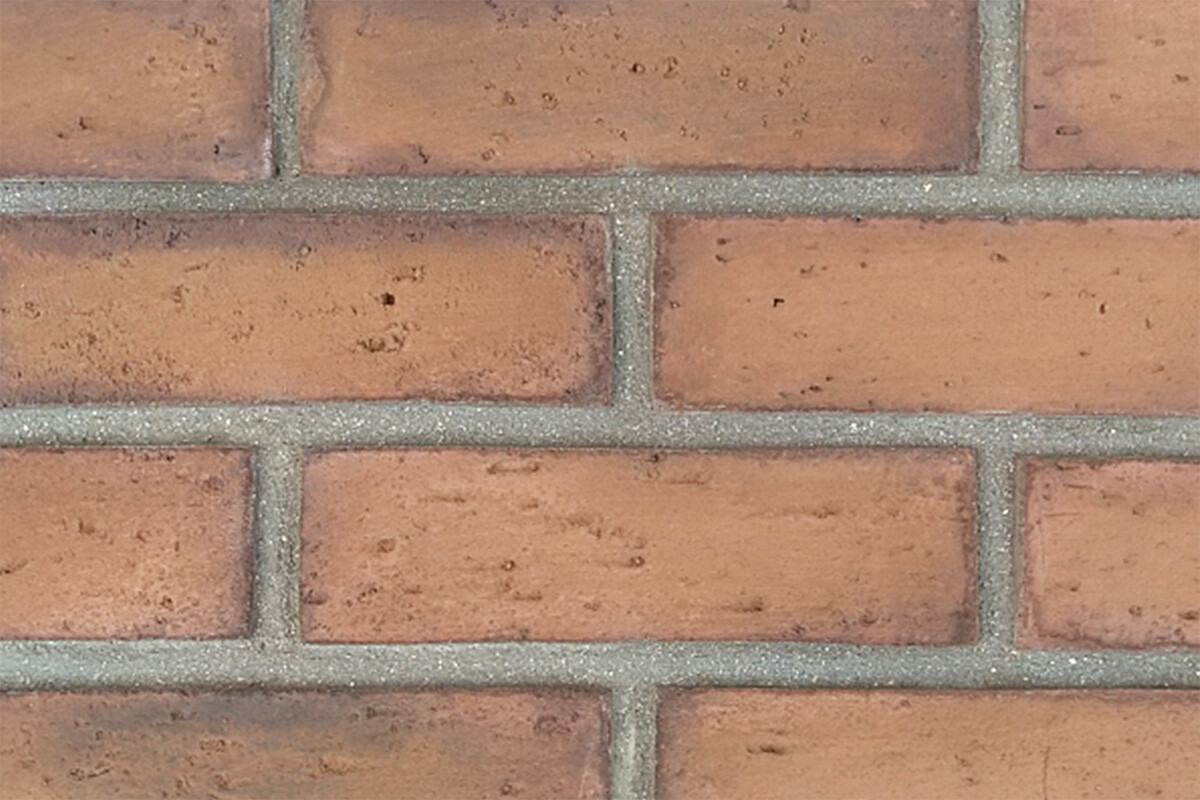

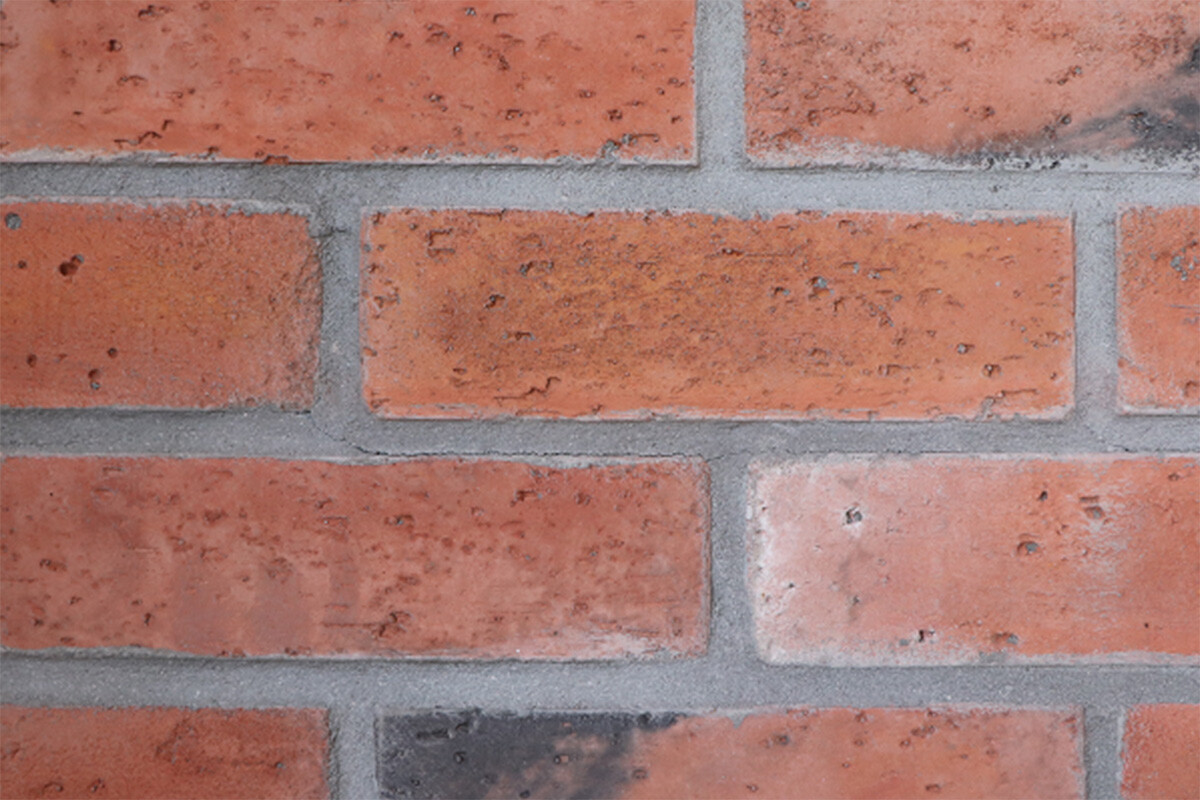

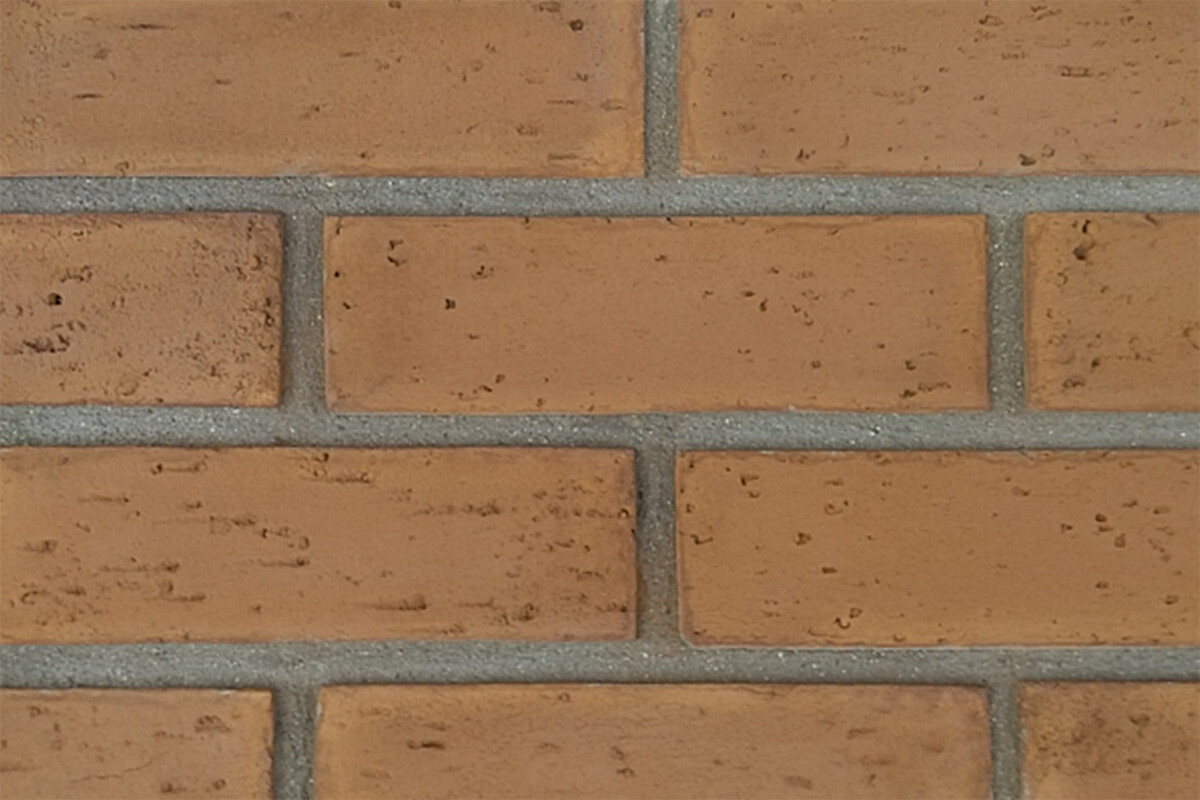

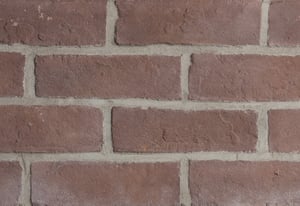

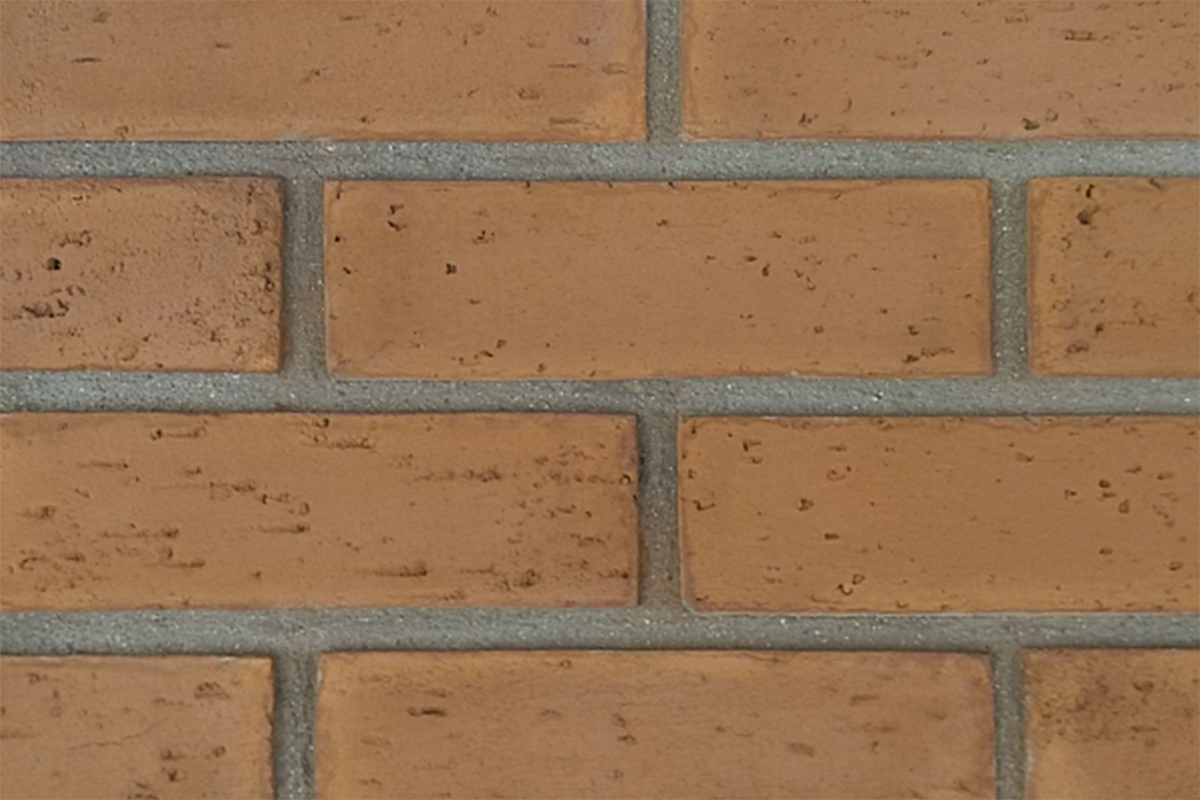

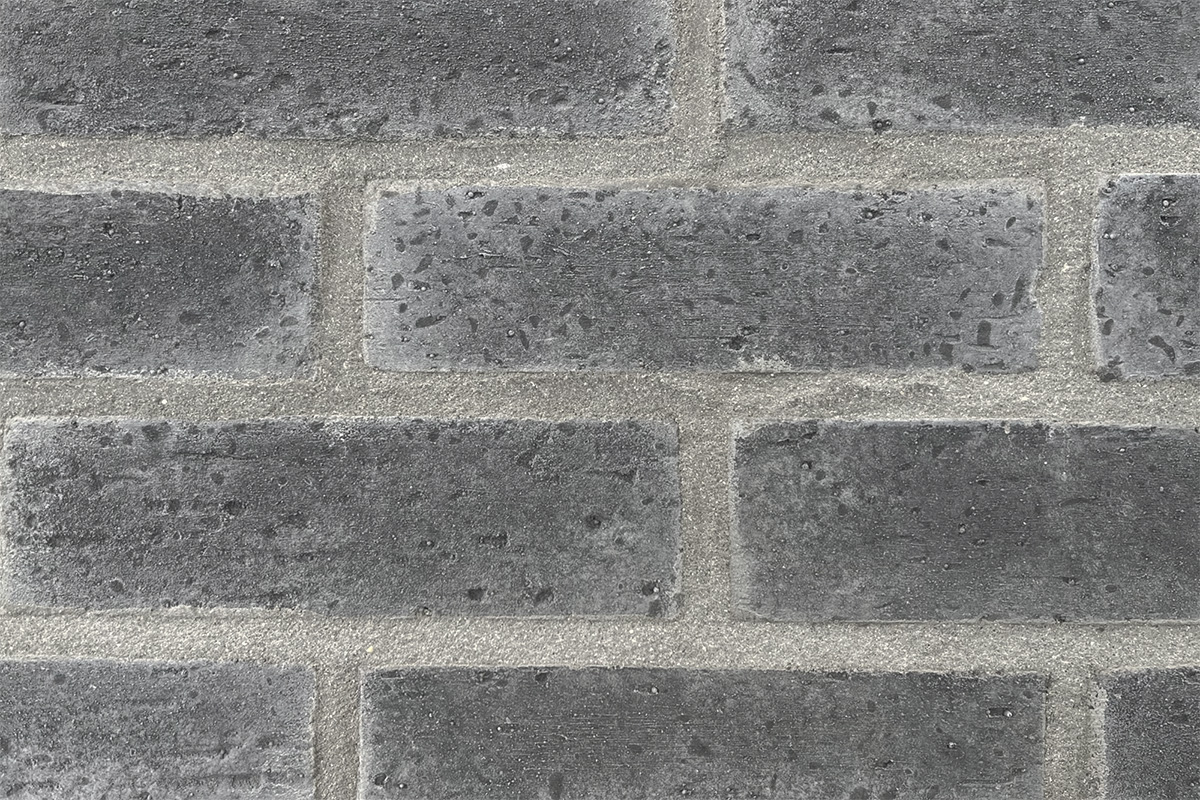

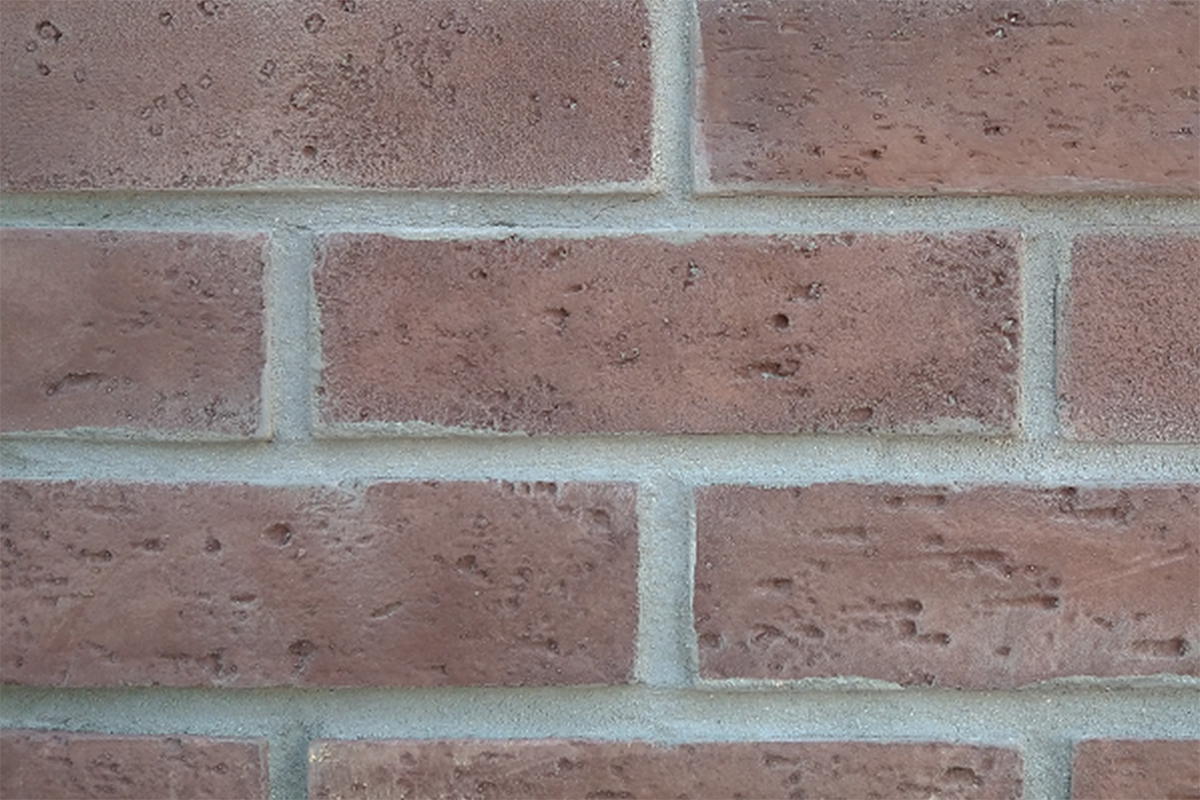

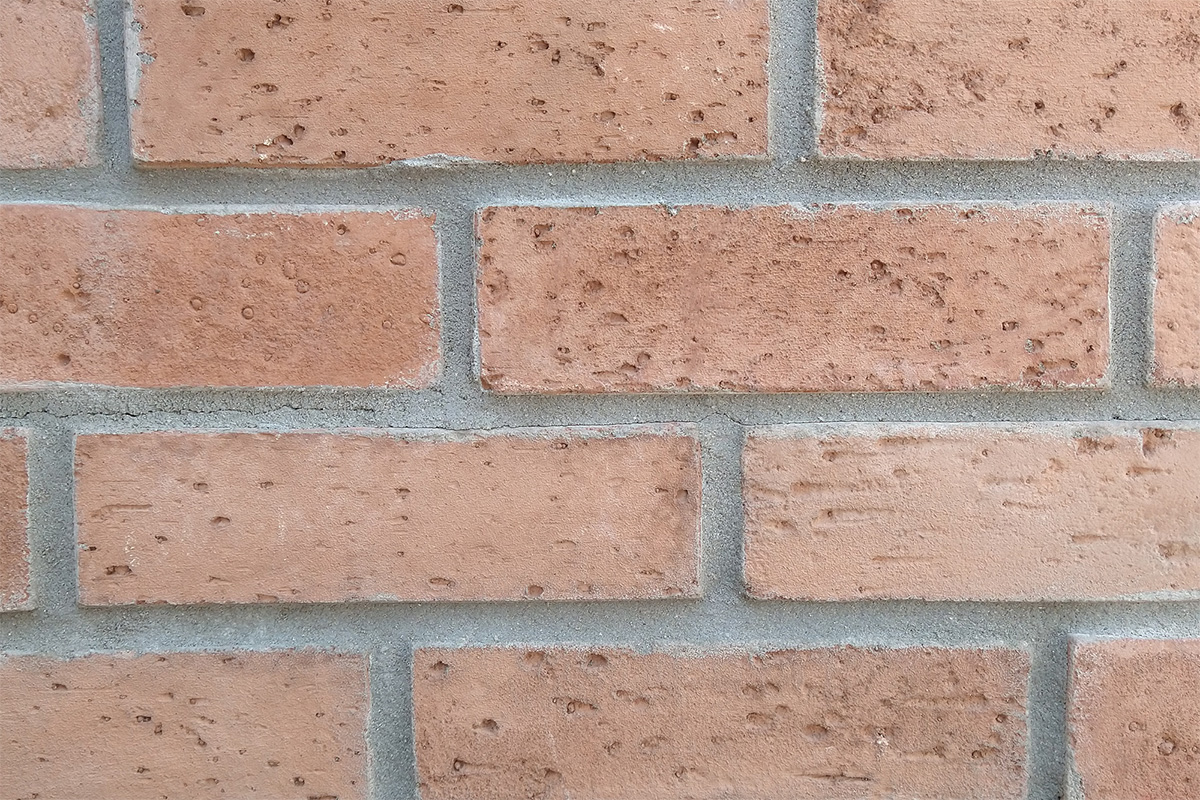

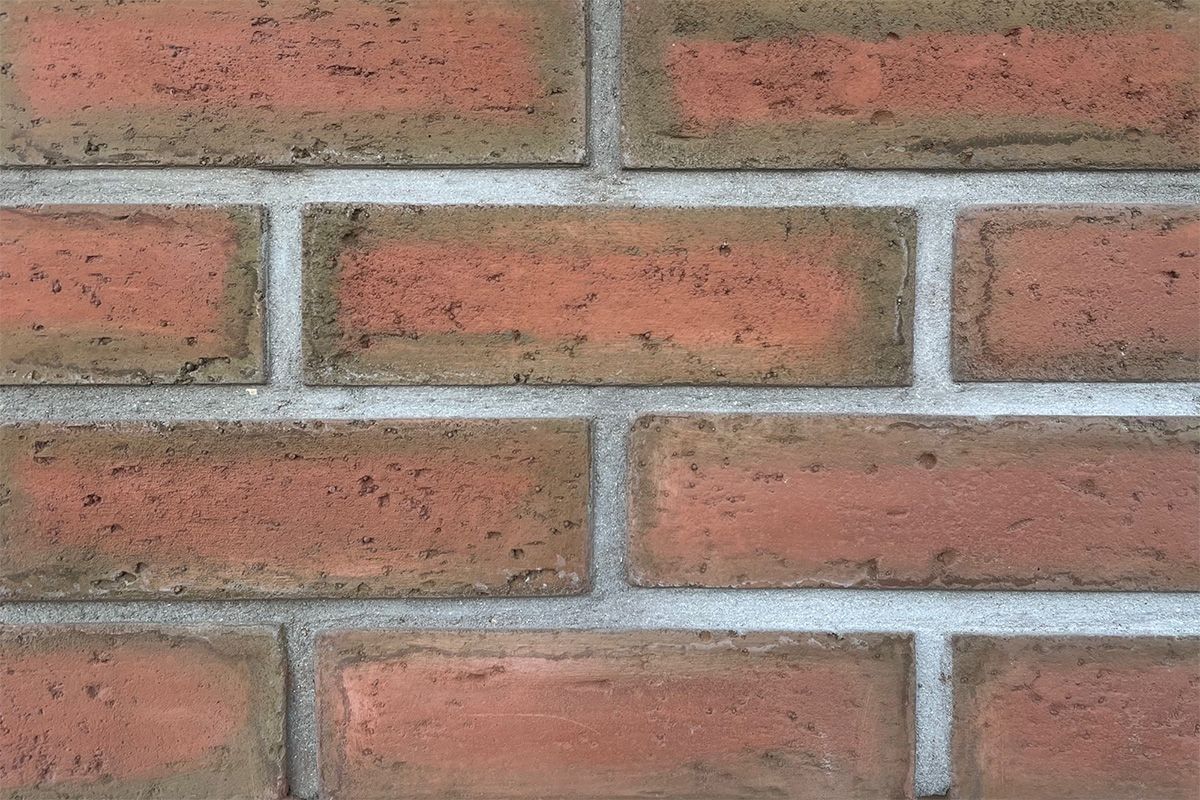

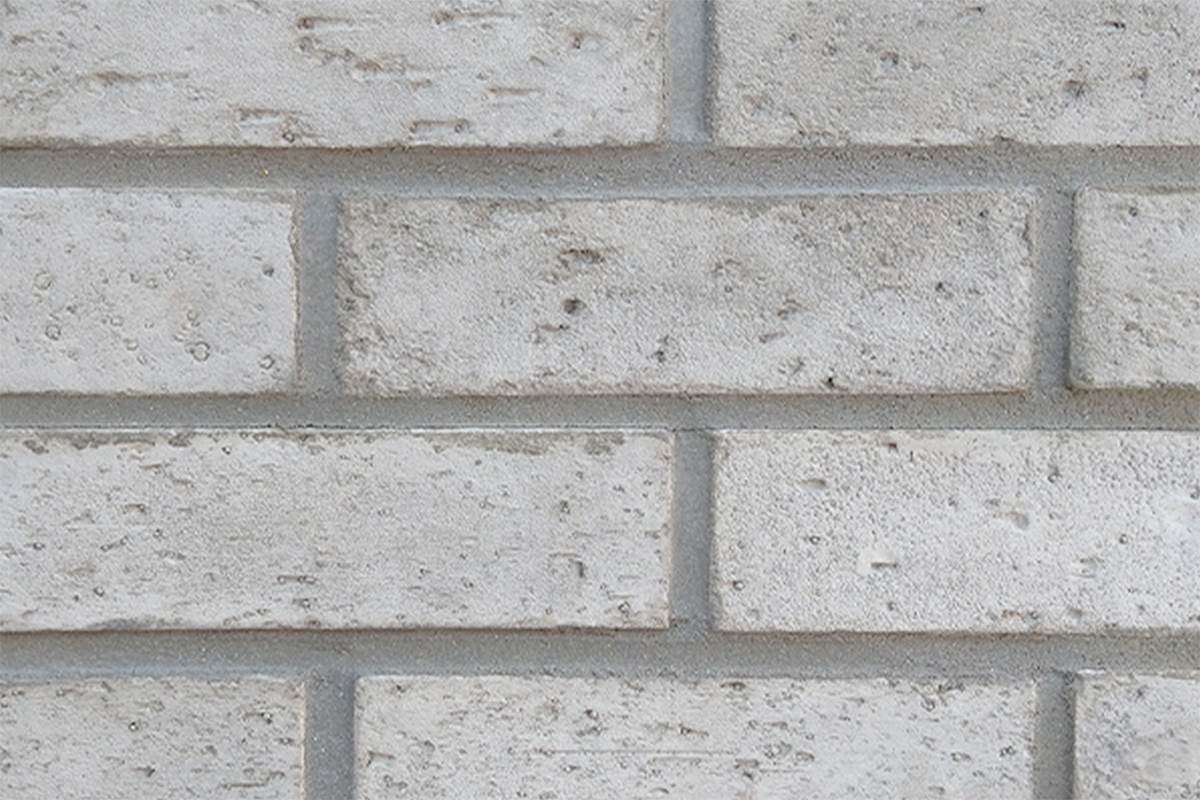

  • Amber, Brackston, Brandywine, Dunrite, Heritage, Plymouth, Statesman, Steel, Umber, Eggshell
Technical Specifications:
Product thickness    1 1/2  inch
Density (lbs. per cu. ft.)    82.2
Temperature hot side (F)    95 degrees
Temperature cold side (F)    55 degrees
Average mean temp (F)    75 degrees
Thermal conductivity (k)    1.569
Thermal resistance (r)    1.148
Absorption (24 hours)    15.1%



Clip System™ Installation Advantages:
  • Built-in drainage plane
  • Ability to install in all temperatures
  • Reduction on materials
  • Easier remodels
  • Less weight per square foot
CLIP COMPATIBLE-1

Thin Brick Panel Dimensions

Number of Pieces × Square Feet per Piece = Total Wall Coverage (Sq/Ft)

Whether you need a full material-and-installation package or product-only supply, we’ll help you determine the right quantity of Metropolitan Brick pieces for your project based on your plans and square-footage requirements. Estimating guides and piece calculators are available upon request.

metro-brick-6
metro-brick-1-flat
metro-brick-corner


Piece
6 Brick Flat
1 Brick Flat
4 Brick Corner
Dimension
8"x15.75"x1.5"
8"x2.625"x1.5"
16.75"x5.25"x1.5"
Length
15.75" Long
8" Long
16.75" Long
Height
8" High
2.625" High
5.25" High
Avg. Thickness
1.5" Thick
1.5" Thick
1.5" Thick
Wall Coverage
0.87 Sq/Ft
0.14 Sq/Ft
0.61 Sq/Ft
Corner Coverage
-
-
5.25" of Corner/Piece



pdf-1

Thin Brick Catalog

sample board

Order Sample

pdf-1

Metropolitan Brick Product Submittal

pdf-1

Standard Colors Package

ios7-download-outline

Traditional Stone Catalog

doc

CSI 3-Part Spec

icc es

ICC-ES Testing Report

ios7-download-outline

Mortar Color Swatches

cad

Seamless Hatch Pattern

50 year

Warranty


two-hands-1_hires-1 Handcrafted

Made by hand, built to last.


tool Customization Endless combinations and customization.
warranty-1 Warranty 50 Year Warranty on all Styles.
